How to mount your BORA ceiling fan

How to install a ceiling fan step by step

Assembly guide

Surely you know the benefits and advantages of having a ceiling fan at home compared to other air conditioning systems. It allows you to cool your room in summer without suffering discomfort, dry throat and eyes, or even colds. At the same time it has a lower consumption (approximately 98% less if we compare an air conditioning unit with a DC motor fan), it is more respectful with the environment and it is quieter, allowing you to use it while you sleep improving the quality of your rest without interrupting it.

If you still like to use air conditioning, having a ceiling fan in conjunction with the air conditioner allows you to lower the performance of the air conditioner. The fan will distribute the air (cool in summer and warm in winter) around the room, making it work less and increasing the lifetime of the air conditioner.

When it comes to installing our ceiling fan, some doubts may arise. Arteconfort ceiling fans are easier to install and below we explain step by step how to install our BORA model with DC motor.

Download the instruction manual

Always have the BORA fan instruction manual at hand, if you need it in PDF format you can download it here.

Download instructions

Where to place our ceiling fan

Before assembly

There are a few things to keep in mind before you start assembling the fan. First and foremost, you must follow all the precautions and safety measures in the instruction manual. This seems obvious, but it is what you must do if you want your fan to work properly.

Next, choose well the location where you will place your fan, as the characteristics of the room will be a crucial factor to ensure the performance and efficiency of the device. Take into account the recommendations below to allow for proper airflow:

  • Allow a vertical safety distance of 2.5m from the fan to the floor.
  • Allow a horizontal distance of 50cm or more from the blades to the wall or any nearby object.
  • The ceiling on which it is to be installed must be firm, without cracks or any damage, and able to support the weight of the fan in operation.
  • Check that the fan is suitable for the size of the room where you want to install it.

Fitting the fan blades

First step

As we have already mentioned, Arteconfort fans are easier to install. When you take it out of the packaging, identify the different parts of the fan and you will see that the body comes pre-assembled. This saves you having to assemble the trims, the stem, the mocker and the LED module.

The first thing you will need to mount is the blades. To do this, locate the cover that you will find on the fan body. Unscrew one of the screws on the cover and loosen the other one to open it. This opening is the one that will allow access to the blade threads.

Then, choose the colour of the blade you want (wood or silver) and insert the first blade into the fan body. Turn the blade until you can access the screw threads through the cover that you have previously opened. Using a screwdriver with a magnetic tip, screw in the 3 screws to fix the fan blade (place the screws in an orderly fashion and tighten them evenly until they are all fixed).

Once you have fitted this first blade, repeat the process with all the remaining blades. When you have all the blades in place, close and screw the cover back on with the screws.

*Remember to unpack and handle components carefully so that they are not scratched or damaged during assembly.

Step 3: Install the LED

Screw the plate with the LED module to the fan body and connect the different wires of both parts using the quick release terminal block.

Step 4: Ceiling attachment

Pasos para instalar tu ventilador de techo BORA - Montaje LED

First of all, make sure that the electrical power is disconnected at the mains to be on the safe side during the installation process.

Now, present the ceiling bracket at the place where you are going to place the fan and mark the points where you are going to drill. To do this, you should use the screws and plugs provided in the packaging in the case of a masonry ceiling, or use another type of fastening for other types of ceilings. Next, screw the bracket to the ceiling, making sure that it is well fixed.

Step 5: Hanging the fan

Insert the weatherstrip into the hole in the roof attachment. Observe that the ceiling bracket has a notch on one side and the ceiling bracket has a tooth. In this part it is very important that, once you have the fan hanging from the ceiling bracket, turn it until you notice that the tooth of the ceiling bracket enters the notch of the ceiling bracket. This way, the fan will be perfectly fixed.

Once you have the fan attached to the ceiling, connect the wires hanging from the ceiling to the terminal block: normally brown is phase, blue is neutral and yellow and green are earth.

Step 6: Fix the controller

Insert the fan controller into the hole left in the ceiling bracket, with the flat part of the controller sticking to the ceiling. Check the connections on the controller and connect the cable with the quick release clamp coming out of the ceiling fixing.

Then connect the wires from the fan to the corresponding plug and connect the two earth wires together.

Seventh step: Fitting the trim

In this step, place the trim that covers the ceiling bracket. To do this, note that the bracket has two screws on each side that will be screwed into the holes in the trim. Remove the screw on each side that will be screwed into the hole in the trim and loosen the screw on each side that will pass through the guide of the trim.

Then pull the trim up to cover the ceiling attachment, matching the holes with the screws. Fix the screws and check that the trim is correctly positioned.

Step 8: Fitting the lampshade

Place the glass or plastic lampshade covering the LED module so that it is securely fastened. It is not very difficult but you have to be careful when screwing it in case it falls on the floor.

Your ceiling fan is now installed! Restore the power and enjoy your silent ceiling fan with LED light and remote control.

Within our catalogue you can find models that require a different installation method:

How to mount your BORA, AVEIRO and CACELA ceiling fan

The BORA ceiling fan comes with the body assembled, which saves you having to fit the trims, the stem, the mocker and the LED module.

  1. Install the blades. To do this, locate the body cover, unscrew one of the screws and loosen the other to fit each blade. Then screw on each fan blade and close the cover again.
  2. Drill the holes in the ceiling and place the dowels, and finish by screwing the ceiling bracket.
  3. Connect the power cables from the ceiling to the terminal block of the fan’s ceiling bracket.
  4. Hang the fan on the ceiling bracket and turn until the tooth on the bracket matches the notch on the mock-up.
  5. Position the controller and connect the connection clamps, raise the trim and screw it in place.

Instructions for the BORA model

Follow all assembly steps visually

See instructions
Ventilador de techo BORA M PRO MADERA vista inferior

How to assemble your ceiling fan CONIL, MOALA and MANILA

To install the CONIL ceiling fan we have to take into account that the blades are mounted after placing the fan body so that they do not collide with the ceiling.

  1. Mark and drill the holes in the ceiling to insert the plugs and screw the brackets in place.
  2. Connect the wires from the ceiling to the terminal block of the ceiling bracket.
  3. Connect the terminal block and screw the fan body to the ceiling bracket.
  4. Attach the fan blades. To do this, unscrew the fan blade mounting plate to position the fan blades properly and then screw them back on.
  5. Screw in the LED module, connect the terminal block and fit the ceiling light.

Instructions for the CONIL model

Follow all assembly steps visually

See instructions
Ventilador de techo CONIL

How to assemble your NAIROBI, ALTEA and NERJA ceiling fans

Ceiling fans are much easier to mount and require fewer installation steps

  1. Mark and drill holes in the ceiling for the ceiling attachment and insert the dowels.
  2. Position and screw the ceiling bracket.
  3. Connect the wires from the ceiling to the terminal block of the ceiling mounting.
  4. Screw the ceiling panel to the ceiling mounting.

Instructions for the ALTEA model

Follow all assembly steps visually

See instructions
Ventilador de techo ALTEA

How to mount your BLANES and SKY ceiling fan

Installation is similar to that of the ceiling fans but with the addition of an extra step.

  1. Mark and drill the holes in the ceiling for the ceiling fixing and insert the plugs.
  2. Position and screw the ceiling bracket.
  3. Connect the wires from the ceiling to the terminal block of the ceiling mounting.
  4. Remove the fastening plate screws and hook the fan body onto the fastening plate, but do not push it all the way in until the controller is in place.
  5. Connect the connection terminals between the fan and the controller, and now screw the ceiling bracket to the fan body.
  6. Install the fan blades, remove the screws on the underside of the fan body to attach the LED module and screw it back on.
  7. Connect the connection terminals of the LED module and screw on the ceiling light.

Instructions for the BLANES model

Follow all assembly steps visually

See instructions
Ventilador de techo BLANES

How to mount your ANTARES and ADRA ceiling fan

These fan designs have a different installation than the others, so you have to be careful when mounting the fan shaft.

  1. Install the fan blades on the fan body and screw each one on.
  2. Remove the screws and fasteners from the shaft and remove the bearing half-sphere.
  3. Insert the shaft into the fan body and fit the fasteners.
  4. Put the trim on the inside of the post and then insert the bearing half-sphere with its respective screws.
  5. Remove the screws at the bottom of the fan body, insert the LED module, screw it back in and connect the connection terminals.
  6. Mark and drill holes in the ceiling for the ceiling mounting and insert the dowels.
  7. Position and screw the ceiling bracket and connect the ceiling cables to the terminal block of the ceiling bracket.
  8. Hang the fan on the ceiling bracket and turn it until the tooth on the bracket matches the notch in the mock-up.
  9. Position the controller and connect the connection terminals, then raise the trim and screw it on.

ADRA model instructions

Follow all assembly steps visually

See instructions
Ventilador de techo ADRA

How to assemble your CRETA ceiling fan. CIES PLUS, BELA, EDHEA AC, ELLIS, ETNA, FERROL, GOMERA, MALTA and ZEN

More models with differences in their installation. In this case, in models such as the Creta or the Cies Plus, the order of some of the steps has been changed.

  1. Remove the screws from the body of the fan, insert the trim into the post and mount it on the body with the fasteners and screws.
  2. Install the fan blades on the fan body and screw each of them.
  3. Remove the screws from the bottom of the fan body, screw the LED board and then the LED module inside the fan body.
  4. Connect the LED terminal block.
  5. Mark and drill the holes in the ceiling for the ceiling mounting and insert the dowels.
  6. Screw the ceiling mounting and connect the power cables from the ceiling to the fan’s ceiling mounting terminal block.
  7. Hang the fan from the ceiling bracket and turn it until the tooth on the bracket matches the notch.
  8. Place the controller and connect the connection terminals and then raise the trim and screw it on.

Instructions for the CRETA model

Follow all assembly steps visually

See instructions
Ventilador de techo CRETA

How to assemble your FOZ, MAUI, IBIZA, MILANO, NAUTIC, NEVIS, PACIFIC, ROCIO, SIDNEY, TAHITI and PARIS ceiling fan

Ceiling fans such as the TAHITÍ or the MAUI have the same installation as the CRETA model but after raising the trim and screwing it on, an extra step is added: screwing the ceiling light onto the LED module.

Instructions for the TAHITI model

Follow all assembly steps visually

See instructions
Ventilador de techo Tahití madera oscura

How to assemble your CACELA, LESNA, AZORES, MEGÍA, MISI, MYKONOS L, SINTRA, TAVIRA PI 44, VELEZ, VIGO and WINGLET ceiling fan

CACELA and LESNA fans are easier to install as they come with the body already assembled.

  1. Place the blades on the fan body and screw them on.
  2. Remove the screws from the bottom of the fan body, screw in the LED module.
  3. Mark and drill holes in the ceiling for the ceiling attachment and insert the dowels.
  4. Screw the ceiling bracket and connect the power cables from the ceiling to the fan’s ceiling bracket terminal block.
  5. Hang the fan from the ceiling bracket and turn it until the tooth on the bracket matches the notch in the mock-up.
  6. Fit the controller and connect the connection clamps, then raise the trim and screw it on.
  7. Screw the ceiling light in to the LED module.

Instructions for the CACELA model

Follow all assembly steps visually

See instructions
Ventilador de techo CACELA

How to mount your NASAU ceiling fan

The NASAU ceiling fan has a very similar assembly to the CACELA and LESNA as it comes with the body already assembled.

  1. Remove the screws from the LED module, remove the LED module and unscrew the LED plate.
  2. Install the blades, screw the LED plate back on, screw the LED module back on, and screw the LED module back on.
  3. Mark and drill holes in the ceiling for the ceiling attachment and insert the dowels.
  4. Screw the ceiling mounting and connect the power cables from the ceiling to the terminal block of the ceiling mounting of the fan.
  5. Attach the fan to the ceiling bracket and turn it until the tooth on the bracket matches the notch in the mock-up.
  6. Fit the controller and connect the connection clamps, then raise the trim and screw it on.
  7. Screw the ceiling light onto the LED module.

NASAU Model Instructions

Follow all assembly steps visually

See instructions
Ventilador de techo NASAU colores

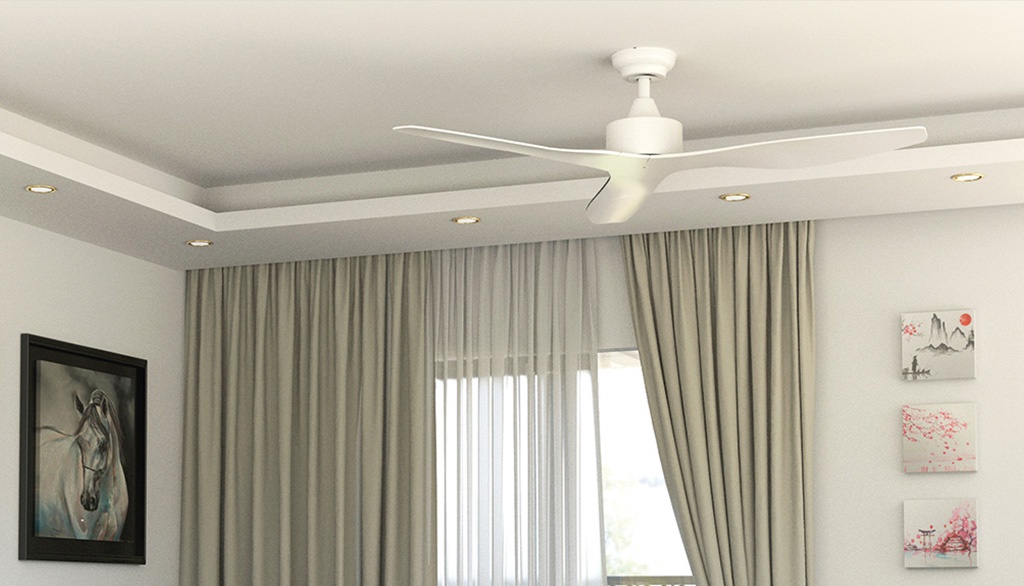

How to mount your EGEO ceiling fan

The EGEO ceiling fan differs from other installations in the initial steps, so don’t miss out on the details.

  1. Unscrew the retaining parts, the housing from the body and the screws that are pre-installed in the body.
  2. Screw on the fan blades with the pre-installed screws on the body, then the housing and finally fit the fan post and trims.
  3. Mark and drill the holes in the ceiling for the ceiling bracket and insert the dowels.
  4. Position and screw the ceiling bracket and connect the cables from the ceiling to the terminal block of the ceiling bracket.
  5. Hang the fan from the ceiling bracket and turn it until the tooth on the bracket matches the notch in the mock-up.
  6. Position the controller and connect the connection terminals, then raise the trim and screw it on.

Instructions for the EGEO model

Follow all assembly steps visually

See instructions
Ventilador de techo EGEO detalle desde abajo
